ELOCK2 + SATEL ABAX2
SATEL BeWave Alarm Arming via ELOCK2 Access Control
Access and security from a single source. Local and remote.
Access and security from a single source. Local and remote.
Open, lock, arm, disarm. A single credential controls both access and alarm.
Up to 4,500 transponders per lock, 13.56 MHz ISO 15693, AES encryption, no copying possible.
The alarm is only armed once the system reports ready (all zones closed). No more forgotten arming.
Forced arming per EN 50131-12, status LED feedback, full event logging.
Optional: the door cannot be opened until the alarm has been disarmed. Prevents false alarms on entry.
Configurable per access point, can be activated or deactivated instantly.
Lost transponder: instant block. Emergency: AMOK lockdown blocks every transponder at every door.
Central blocking without cylinder swaps, 512 events logged per lock, emergency opening via Morse code.
The door stays unlocked during business hours. Time-based or event-driven remote control.
254 time-zone profiles, calendar and holiday scheduling, automatic locking after closing time.
Battery-powered locking cylinders and locks. No cabling, no drilling, no impact on the building fabric.
Battery life up to 5 years, FM83 radio module as the interface, fits standard profile cylinder cut-outs.
The wireless RFID locking cylinder is the standard solution for alarm arming. Battery-powered, RFID access with AES encryption, Morse-code emergency opening and integrated time control. Includes the FM83 radio module.
View product (DE shop)
A full-leaf mortise lock with wireless interface. Cable-free, self-locking and VdS-compliant. Ideal for sites with elevated burglar protection requirements combined with alarm arming.
View product (DE shop)
A latch lock with wireless connectivity. Cable-free, self-locking and approved for use on fire doors per DIN 18251. A perfect fit for sites with fire protection requirements.
View product (DE shop)
The FM83 radio module (inside the lock) drives potential-free contacts. The SATEL ACX-210 (ABAX2 4-channel wireless relay) transmits these contacts back to the alarm panel using AES-encrypted, bidirectional radio. Together they form the wireless bridge between lock and alarm.
ACX-210 in shop (DE)

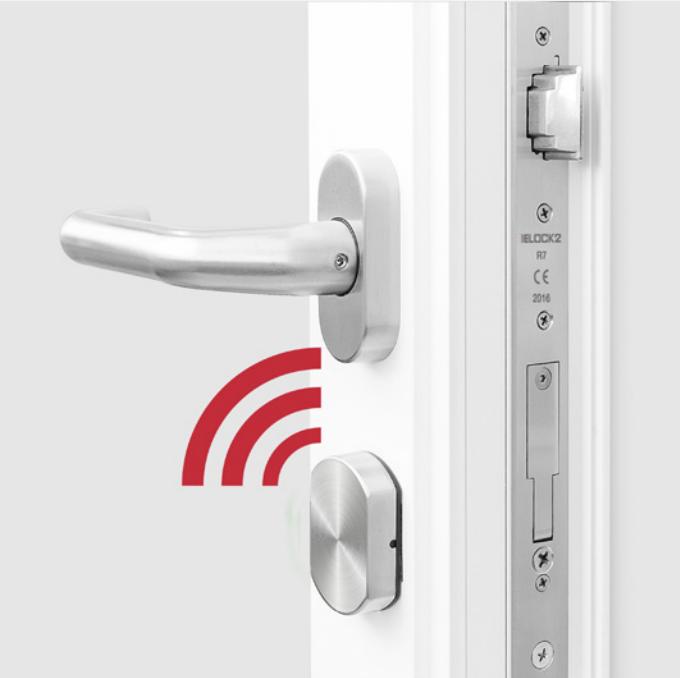

Self-locking wireless narrow-stile lock for slim tubular frame doors such as aluminium entrance doors. Wireless connection via FM83 for alarm arming. Ideal wherever V6 or M6 cannot be installed.
View product (DE shop)

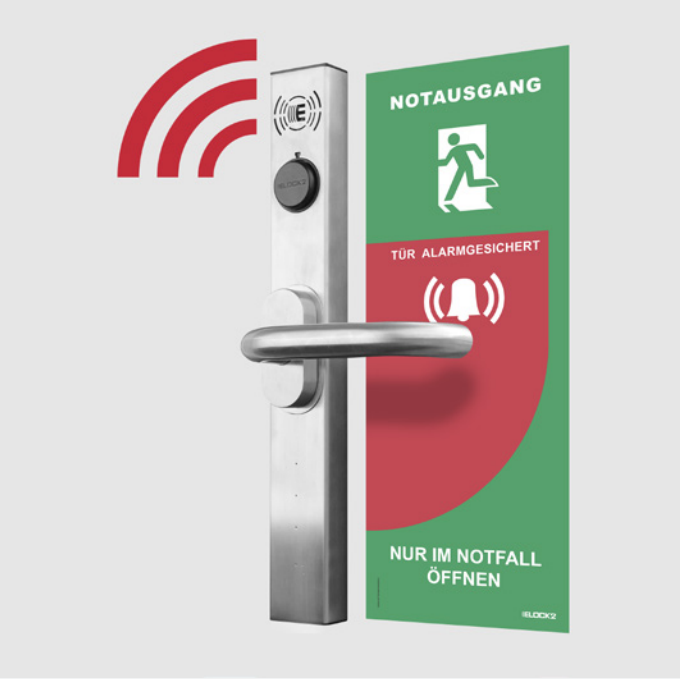

Escutcheon-style lock for fast retrofit on existing doors. Wireless connection via FM83, perfect for retrofit projects without modifying the strike plate. Minimal installation effort.
View in shop (DE)Which doors, which lock types, which BeWave alarm system. Your installer plans the right configuration.
ELOCK2 locking cylinder or mortise lock plus FM83 radio module and SATEL ACX-210 as the wireless bridge to the alarm panel.
Replace the existing profile cylinder, fit the FM83, enroll the ACX-210 with the alarm panel. No wiring at the door.
Configure access rights, time profiles and alarm linking through the SLS-600 software. Up to 4,500 transponders per lock.
From now on, one transponder controls access and alarm. Automatic arming on exit, automatic disarming on entry.
Flexible access management for staff, automatic arming after closing time.
Typical projects: office complexes, medical practices, law firms, retail. Time-based access rights and automatic locking after business hours significantly reduce administrative effort.
Main entrance via transponder, individual apartment locks, optional alarm integration per unit.
Typical projects: residential complexes, senior living, student housing. Each resident receives a personal transponder for the main entrance and their apartment door.
AMOK lockdown, protective blocking and full audit trail for areas with elevated security requirements.
Typical projects: server rooms, laboratories, pharmacies, high-value storage. 512 logged events plus the option of a remotely triggered AMOK lockdown reliably protect sensitive areas.
Answers to the most common questions
Yes. With the ELOCK2 system you control access and the alarm system through a single transponder. When you leave the building, the alarm is armed automatically as soon as all zones are closed. When you enter, it disarms automatically. Your certified installer will plan the right configuration for you.
No. The ELOCK2 locking cylinders and mortise locks are battery-powered and communicate wirelessly. You simply replace the existing mechanical cylinder with the electronic ELOCK2 cylinder. No drilling, no cabling, no damage to the door.
The ELOCK2 locks run on their own batteries (lifetime up to 5 years) and are independent of the mains power supply. The system warns you in good time when battery levels run low. There is also an emergency opening function via Morse code.
ELOCK2 transponders use AES-encrypted communication on 13.56 MHz (ISO 15693). The transponders are forgery-proof and cannot be copied. The locks also offer drill, pull and snap protection comparable to a mechanical high-security cylinder.
Yes. A lost transponder can be blocked instantly through the SLS-600 software. There is no need to swap cylinders the way you would with mechanical keys. As an option you can also activate the protective lockdown, which blocks the lock for all transponders.
Yes. The complete system runs locally over radio (868 MHz). No internet and no cloud are required. The ELOCK2 lock (FM83 radio module) and the SATEL alarm panel (ACX-210) communicate directly via encrypted ABAX2 radio.
The ELOCK2 system scales freely. Each lock manages up to 4,500 transponders. Through the SATEL BeWave alarm panel, multiple access points can be linked together with arming. Your installer will plan the optimal configuration for your site.
Yes. ELOCK2 locking cylinders fit any standard profile cylinder cut-out (DIN dimensions). The mortise locks (V6, M6, R6) replace existing mechanical locks. For existing doors without modifying the strike plate the TW6S wireless escutcheon lock is the right choice. Installation usually takes less than 30 minutes per door.
Arming via ELOCK2 in combination with SATEL BeWave meets the requirements of EN 50131-12 for forced arming. Before arming, the alarm system checks that all zones are closed. The SATEL BeWave panels are certified to EN 50131 Grade 2.
The FM83 radio module inside the ELOCK2 lock drives potential-free contacts that are wired to the SATEL ACX-210 (4-channel ABAX2 wireless relay). The ACX-210 communicates with the SATEL alarm panel using AES-encrypted, bidirectional 868 MHz radio (4-band). All switching and status data is transmitted in real time.
All ELOCK2 locks equipped with the FM83 radio module: the SLS-61.FS wireless RFID locking cylinder (standard application), the V6 self-locking mortise lock (VdS-compliant), the M6 latch lock (suitable for fire doors per DIN 18251), the R6 narrow-stile lock for aluminium and tubular frame doors and the TW6S wireless escutcheon lock for retrofit on existing doors.
Yes. Through the SATEL BeWave alarm panel you can activate the protective lockdown (opening block) and the AMOK lockdown (blocking of all transponders) remotely. Control is possible via the SATEL keypad, the SATEL BeWave app or the monitoring station. In an AMOK event, all access points are blocked immediately.
Talk to our specialists about the ELOCK2 configuration that fits your site.
